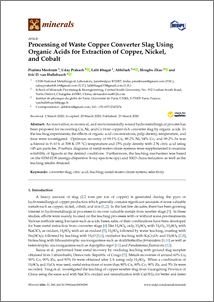

Processing of Waste Copper Converter Slag Using Organic Acids for Extraction of Copper, Nickel, and Cobalt

An innovative, economical, and environmentally sound hydrometallurgical process has been proposed for recovering Cu, Ni, and Co from copper-rich converter slag by organic acids. In the leaching experiments, the eects of organic acid concentrations, pulp density,temperature, and time were investigated. Optimum recovery of 99.1% Cu, 89.2% Ni, 94% Co, and 99.2% Fe was achieved in 9–10 h at 308 K (35 oC) temperature and 15% pulp density with 2 N citric acid using <45 micron particles. Pourbaix diagrams of metal-water-citrate systems were supplemented to examine solubility of ligands at the desired conditions. Furthermore, the leaching mechanism was based on the SEM-EDS (energy-dispersive X-ray spectroscopy) and XRD characterization as well as the leaching results obtained.
