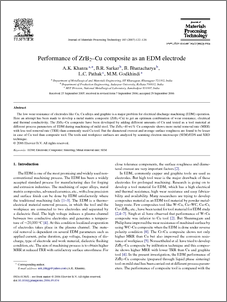

Performance of ZrB2–Cu composite as an EDM electrode

The low wear resistance of electrodes like Cu, Cu alloys and graphite is a major problem for electrical discharge machining (EDM) operation. Here an attempt has been made to develop a metal matrix composite (ZrB2–Cu) to get an optimum combination of wear resistance, electrical and thermal conductivity. The ZrB2–Cu composite have been developed by adding different amounts of Cu and tested as a tool material at different process parameters of EDM during machining of mild steel. The ZrB2–40 wt.% Cu composite shows more metal removal rate (MRR) with less tool removal rate (TRR) than commonly used Cu tool. But the diameteral overcut and average surface roughness are found to be lesser in case of Cu tool than composite tool. The tools and workpiece surfaces are analyzed by scanning electron microscope (SEM)/EDS and XRD technique.
